Quick Details

  • Place of Origin: Hainan, China (Mainland)
  • Brand Name: TAIYANG
  • Model Number: electric copper wire NYIFY-U
  • Insulation Material: PVC
  • Type: Low Voltage
  • Application: Industrial
  • Conductor Material: Copper
  • Jacket: PVC
  • No.of cores: 1.2.3.4.5.
  • voltage rate: 0.6/1kv
  • cross section: 1.5mm2-800mm2
  • conductor type: class 2
  • product: power cable
  • conductor material: copper
  • package: wooden drum or roll
  • core color: red, yellow, blue, brown, green
  • armour material: steel wire-swa
  • jacket: pvc

Packaging & Delivery

Packaging Details soft packing,100m/roll or as your requirement
Delivery Time Depending on your quantity ,should be negotiated

copper conductor 4 core 185mm2 steel wire armoured power cable/copper cable



1 Information

a, Number of cores:

1,  2,  3,   3+1,   3+2,    3+3,  4,    4+1,    4+2,   5 and so on.



b, Construction:

Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)



c, Nominal Section
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800



d, Features

 XLPE  insulated power cable do not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.



XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of A, B, C.



2 Standard:

IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.



3 The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35



4 Application:

1)These cables are most suitable for direct burial or for installation on trays or ducts,  Where there is
a risk of mechanical damage, armoured cables should be used.

2) For laying in ground along route with large difference of level able to bear external mechanical forces.

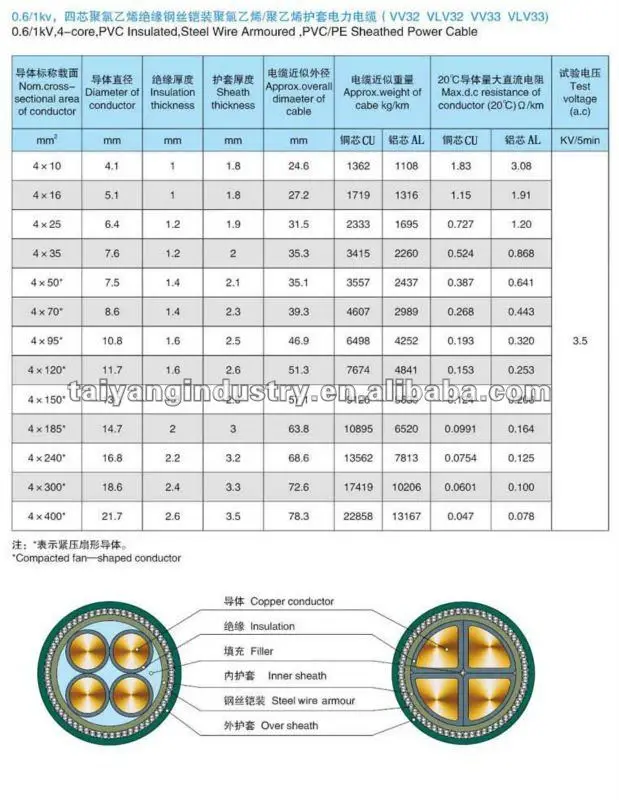

5. Specification:



 6. product and package pictures:





7. Certificate:
